NDS331N - N-Channel Logic Level Enhancement Mode Field Effect Transistor

Datasheet Summary

Description

These N-Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

This very high density process is especially tailored to minimize on-state resistance.

Features

  • 1.3 A, 20 V. RDS(ON) = 0.21 Ω @ VGS= 2.7 V RDS(ON) = 0.16 Ω @ VGS= 4.5 V. Industry standard outline SOT-23 surface mount package using poprietary SuperSOTTM-3 design for superior thermal and electrical capabilities. High density cell design for extremely low RDS(ON). Exceptional on-resistance and maximum DC current capability. _______________________________________________________________________________ D G S Absolute Maximum Ratings Symbol VDSS VGSS ID PD TJ,TSTG Parameter Drain-Source V.

📥 Download Datasheet

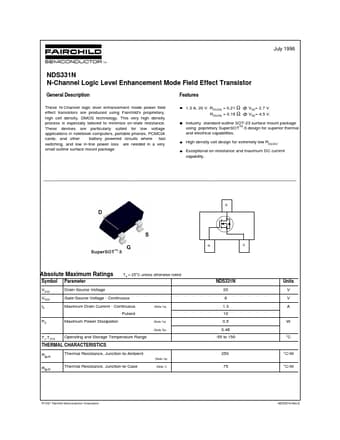

Datasheet preview – NDS331N

Datasheet Details

Part number NDS331N
Manufacturer Fairchild
File Size 59.65 KB
Description N-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet download datasheet NDS331N Datasheet
