NDS03ZD-M6

NDS Series: 10W / 3.0A DC/DC Converters 36-75V Input 1.5V / 1.8V / 2.5V / 3.3V and 5.0V Outputs

NDS03ZD-M6 Features

* Single board design 8.2 mm height profile Input/output isolation: 1500 Vdc Low conducted and radiated EMI Excellent co-planarity Output overcurrent protection Full rated output power at 100L

NDS03ZD-M6 General Description

The NDS series of converters are low profile, single output, DC/DC converters intended for SMT placement and reflow soldering. The product provides on-board conversion of standard telecom, datacom and industrial input voltages to isolated low output voltages. Proprietary patented manufacturing proce.

NDS03ZD-M6 Datasheet (312.54 KB)

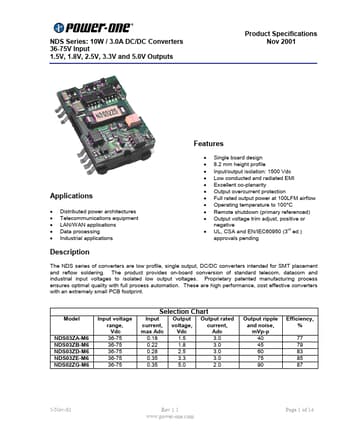

Preview of NDS03ZD-M6 PDF

Datasheet Details

Part number:

NDS03ZD-M6

Manufacturer:

Power-One

File Size:

312.54 KB

Description:

Nds series: 10w / 3.0a dc/dc converters 36-75v input 1.5v / 1.8v / 2.5v / 3.3v and 5.0v outputs.
