NDS336P - P-Channel Logic Level Enhancement Mode Field Effect Transistor

Datasheet Summary

Description

SuperSOTTM-3 P-Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

This very high density process is especially tailored to minimize on-state resistance.

Features

  • -1.2 A, -20 V, RDS(ON) = 0.27 Ω @ VGS= -2.7 V RDS(ON) = 0.2 Ω @ VGS = -4.5 V. Very low level gate drive requirements allowing direct operation in 3V circuits. VGS(th) < 1.0V. Proprietary package design using copper lead frame for superior thermal and electrical capabilities. High density cell design for extremely low RDS(ON). Exceptional on-resistance and maximum DC current capability. Compact industry standard SOT-23 surface package. Mount ______________________________________________________.

📥 Download Datasheet

Datasheet preview – NDS336P

Datasheet Details

Part number NDS336P
Manufacturer Fairchild
File Size 77.51 KB
Description P-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet download datasheet NDS336P Datasheet
Additional preview pages of the NDS336P datasheet.

📁 Similar Datasheet

  • NDS331N - N-Channel MOSFET (VBsemi)
  • NDS351AN - N-Channel MOSFET (ON Semiconductor)
  • NDS355AN - N-Channel Logic Level Enhancement Mode Field Effect Transistor (ON Semiconductor)
  • NDS36P - 16M x 16 bit Synchronous DRAM (INSIGNIS)
  • NDS02ZG-M6 - NDS Series: 10W / 3.0A DC/DC Converters 36-75V Input 1.5V / 1.8V / 2.5V / 3.3V and 5.0V Outputs (Power-One)
  • NDS03ZA - NDS Series: 10W / 3.0A DC/DC Converters 36-75V Input 1.5V / 1.8V / 2.5V / 3.3V and 5.0V Outputs (Power-One)
  • NDS03ZA-M6 - NDS Series: 10W / 3.0A DC/DC Converters 36-75V Input 1.5V / 1.8V / 2.5V / 3.3V and 5.0V Outputs (Power-One)
  • NDS03ZB-M6 - NDS Series: 10W / 3.0A DC/DC Converters 36-75V Input 1.5V / 1.8V / 2.5V / 3.3V and 5.0V Outputs (Power-One)
  • NDS03ZD-M6 - NDS Series: 10W / 3.0A DC/DC Converters 36-75V Input 1.5V / 1.8V / 2.5V / 3.3V and 5.0V Outputs (Power-One)
  • NDS03ZE-M6 - NDS Series: 10W / 3.0A DC/DC Converters 36-75V Input 1.5V / 1.8V / 2.5V / 3.3V and 5.0V Outputs (Power-One)
Other Datasheets by Fairchild
  • NDS331N - N-Channel Logic Level Enhancement Mode Field Effect Transistor
  • NDS332P - P-Channel Logic Level Enhancement Mode Field Effect Transistor
  • NDS335N - N-Channel Logic Level Enhancement Mode Field Effect Transistor
  • NDS351AN - N-Channel MOSFET
  • NDS351N - N-Channel Logic Level Enhancement Mode Field Effect Transistor
  • NDS352AP - P-Channel Logic Level Enhancement Mode Field Effect Transistor
  • NDS352P - P-Channel Logic Level Enhancement Mode Field Effect Transistor
  • NDS355AN - N-Channel Logic Level Enhancement Mode Field Effect Transistor

Full PDF Text Transcription

Click to expand full text

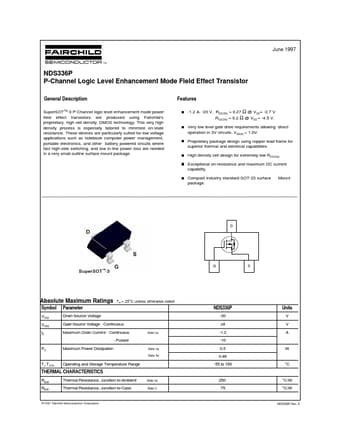

June 1997 NDS336P P-Channel Logic Level Enhancement Mode Field Effect Transistor General Description SuperSOTTM-3 P-Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage applications such as notebook computer power management, portable electronics, and other battery powered circuits where fast high-side switching, and low in-line power loss are needed in a very small outline surface mount package. Features -1.2 A, -20 V, RDS(ON) = 0.27 Ω @ VGS= -2.7 V RDS(ON) = 0.2 Ω @ VGS = -4.5 V.
