NDS352AP - P-Channel Logic Level Enhancement Mode Field Effect Transistor

Fairchild

📥 Download Datasheet

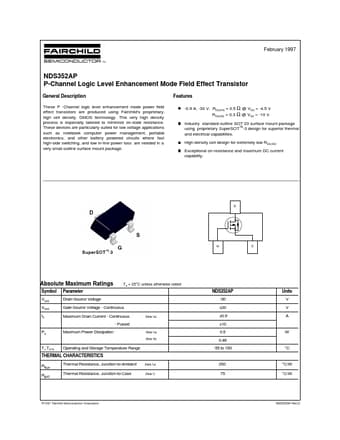

NDS352AP Datasheet Preview — Preview of NDS352AP PDF

Datasheet Details

Part number: NDS352AP
Manufacturer: Fairchild
File Size: 78.57 KB
Datasheet: NDS352AP_FairchildSemiconductor.pdf
Description: P-Channel Logic Level Enhancement Mode Field Effect Transistor

NDS352AP Product details

Description

These P -Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

Features

-0.9 A, -30 V. RDS(ON) = 0.5 Ω @ VGS = -4.5 V RDS(ON) = 0.3 Ω @ VGS = -10 V. Industry standard outline SOT-23 surface mount package using proprietary SuperSOTTM-3 design for superior thermal and electrical capabilities. High density cell design for extremely low RDS(ON). Exceptional on-resistance and maximum DC current capability. ________________________________________________________________________________ D G S Absolute Maximum Ratings Symbol VDSS VGSS ID Parameter Drain-Source Voltage.
