NDS356P Datasheet - Fairchild

NDS356P P-Channel Logic Level Enhancement Mode Field Effect Transistor

These P-Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage app.

NDS356P Features

* -1.1 A, -20V. RDS(ON) = 0.3Ω @ VGS = -4.5V. Proprietary package design using copper lead frame for superior thermal and electrical capabilities. High density cell design for extremely low RDS(ON). Exceptional on-resistance and maximum DC current capability. Compact industry standard SOT-23 surface m

NDS356P_FairchildSemiconductor.pdf

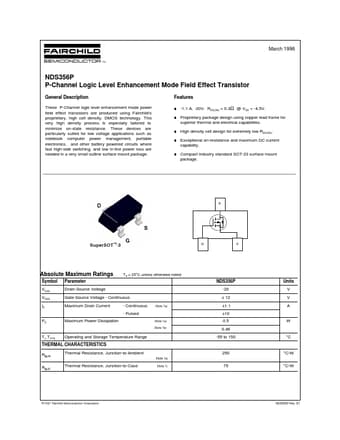

NDS356P Datasheet Preview — Preview of NDS356P PDF

Datasheet Details

Part number:

NDS356P

Manufacturer:

Fairchild

File Size:

78.03 KB

Description:

P-channel logic level enhancement mode field effect transistor.
