PT3665 - Hi-Sensitivity Hall-effect Switch

PT3665 Description

Hall IC PT3665 Hi-Sensitivity Hall-effect Switch Applications Cover detector Battery-operated Hand Held Equipment Package Type P/N: PT3665 .

PT3665 Features

* 2.4V to 5.5V operation range Built-in dynamic offset cancellation Small size High balance and low thermal drift magnetic sensing ESD protected to 5KV(HBM) SOT23 VDD 1 OUT 2 665 XXX 3 GND Order information PT3665 /PKG:SOT23 1. VDD/DC power supply 2. Out/output pin 3. GND/DC ground Specifica

📥 Download Datasheet

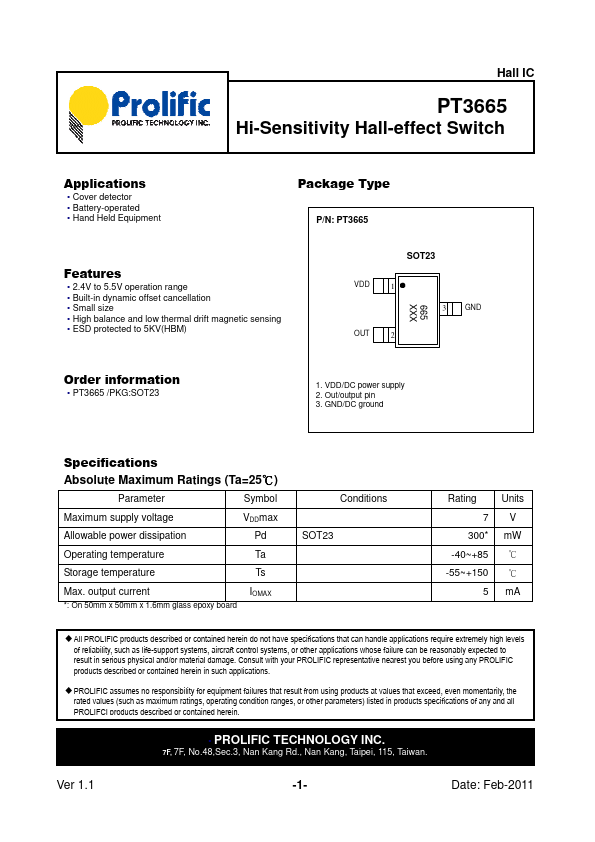

Preview of PT3665 PDF

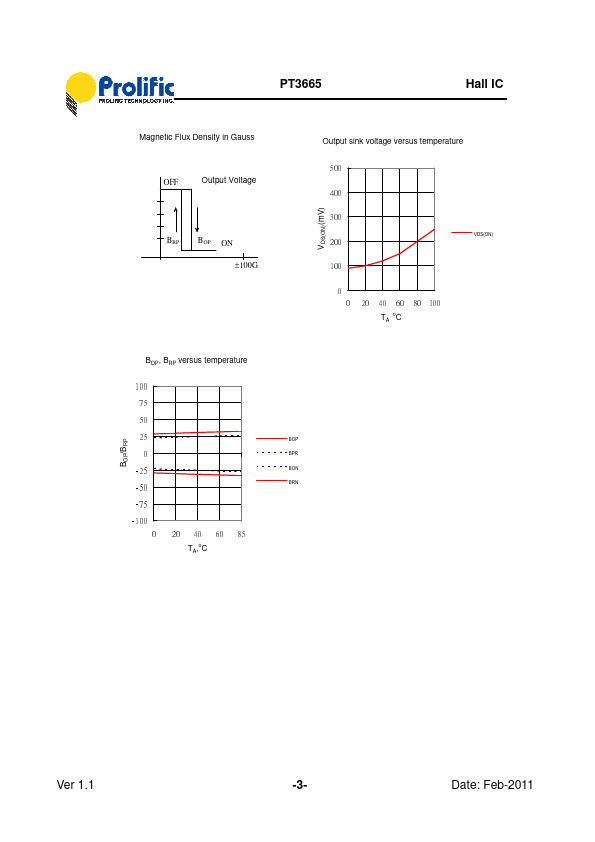

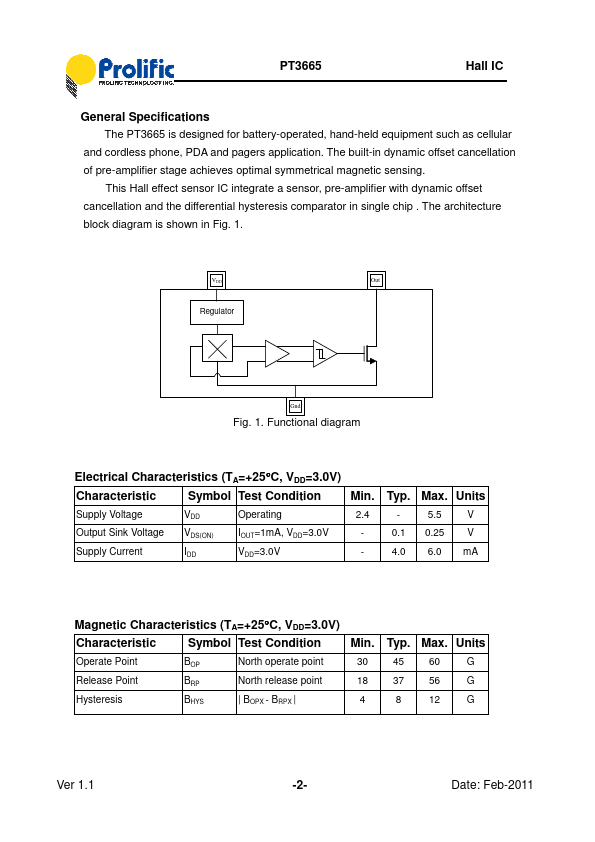

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT3665
Manufacturer
Prolific
File Size
936.61 KB
Datasheet
PT3665-Prolific.pdf
Description
Hi-Sensitivity Hall-effect Switch
