SM15KPA43CA 15kW SURFACE MOUNT POWER TVS COMPONENT

The SM15KPA Series are high-powered surface mount transient voltage suppression components designed to protect equipment and systems from the damaging effects of high voltage spikes. The surface mount package configuration provides a lower profile at a reduce cost compared to legacy axial lead packa.

SM15KPA43CA Features

* Compatible with IEC 61000-4-5 (Surge): 48A, 8/20µs - L3(LineGround), L4(Line-Line) & L1 (Power)

* 15,000 Watts Peak Pulse Power per Line (tp = 10/1000µs)

* Unidirectional and Bidirectional Configurations

* Easy Mounting to Printed Circuit Board

* Availa

SM15KPA220CA_ProtekDevices.pdf

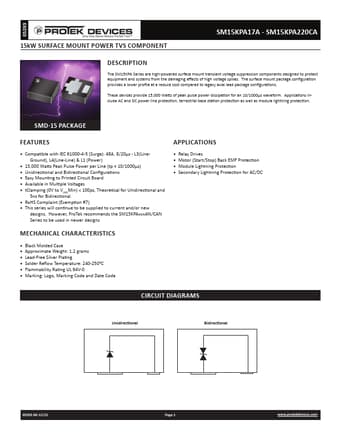

SM15KPA43CA Datasheet Preview — This datasheet PDF includes multiple part numbers: SM15KPA43CA, SM15KPA220CA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SM15KPA43CA, SM15KPA220CA

Manufacturer:

Protek Devices

File Size:

372.77 KB

Description:

15kw surface mount power tvs component.

Note:

This datasheet PDF includes multiple part numbers: SM15KPA43CA, SM15KPA220CA.
Please refer to the document for exact specifications by model.
