SM15KPA45AN Datasheet - Protek Devices

15kW SURFACE MOUNT POWER TVS COMPONENT

SM15KPA45AN Features

* RTCA DO-160G COMPLIANT PRODUCT

* Compatible with IEC 61000-4-5 (Surge): 48A, 8/20µs - L3(Line- Ground), L4(Line-Line) & L1 (Power)

* 15,000 Watts Peak Pulse Power per Line (tp = 10/1000µs)

* Unidirectional and Bidirectional Configurations

* Easy Mountin

SM15KPA45AN General Description

The SM15KPAN Series are high-powered surface mount transient voltage suppression components designed to protect equipment and systems from the damaging effects of high voltage spikes. The surface mount package configuration provides a lower profile compared to legacy axial lead package configuration.

SM15KPA45AN Datasheet (415.14 KB)

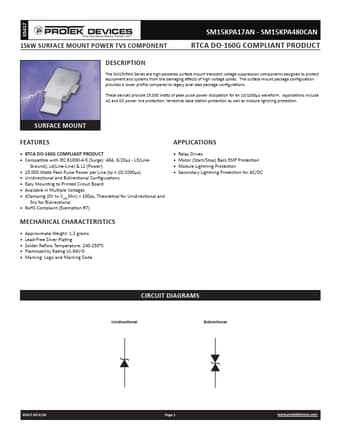

Preview of SM15KPA45AN PDF

Datasheet Details

Part number:

SM15KPA45AN

Manufacturer:

Protek Devices

File Size:

415.14 KB

Description:

15kw surface mount power tvs component.
05417 Only One Name Means ProTek’Tion™ 15kW SURFACE MOUNT POWER TVS COMPONENT SM15KPA17AN - SM15KPA480CAN RTCA DO-160G COMPLIANT PRODUCT DESCRIPTIO.
