QPA1022 4 W GaN Power Amplifier

QPA1022 QPA1022 Amplifier, Shipping Tray, Qty 50 QPA1022TR QPA1022 Amplifier, Tape & Reel 7“, Qty 250 QPA1022EVB0 QPA1022 Evaluation Board, Qty 1 Data Sheet Rev B, June 2020 | Subject to change without notice 1 of 17 www.qorvo.com QPA1022 ® 8.5 * 11 GHz 4 W GaN Power Amplifier Ab.

QPA1022 ® 8.5 11 GHz 4 W GaN Power Amplifier Product Overview Qorvo’s QPA1022 is a packaged, high performance power amplifier fabricated on Qorvo’s production 0.15 um GaN on SiC process (QGaN15). Covering 8.5 11.0 GHz, the QPA1022 provides > 4 W of saturated output power and 24.5 dB of large-signal gain while achieving 45% poweradded efficiency. Packaged in a small 4 x 4 mm plastic overmold QFN, the QPA1022 is matched to 50Ω with integrated DC blocking capacitors at RF ou.

QPA1022 Features

* Frequency Range: 8.5

* 11 GHz

* PSAT (PIN=12 dBm): 36.5 dBm

* PAE (PIN=12 dBm): 45 %

* Power Gain (PIN= 12 dBm): 24.5 dB

* Small Signal Gain: 32 dB

* Bias: VD = 22 V, IDQ = 180 mA

* Package Dimensions: 4 x 4 x 0.85 mm Performance is t

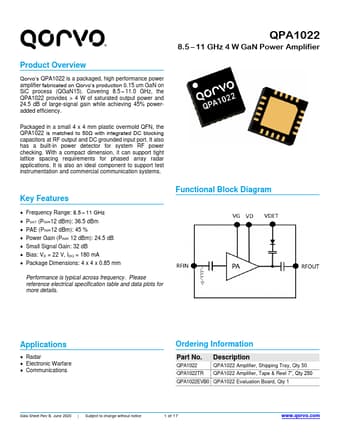

QPA1022 Datasheet (1.05 MB)
