QPA4463A Cascadable SiGe HBT Amplifier

QPA4463ASQ 25 Piece Sample Bag QPA4463ASR 100 Pieces on 7” Reel QPA4463ATR7 3000 pieces on a 7” reel QPA4463APCK401 850 MHz, EVB with 5 Piece Sample Bag 1 of 7 www.qorvo.com PRELIMINARY QPA4463A ® DC * 3500 MHz Cascadable SiGe HBT Amplifier Absolute Maximum Ratings Parameter .

QPA4463A ® DC 3500 MHz Cascadable SiGe HBT Amplifier Product Overview The QPA4463A is a high performance SiGe HBT MMIC amplifier. A Darlington configuration provides high FT and excellent thermal performance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products. The QPA4463A may be operated from a variety of supply voltages by using a .

QPA4463A Features

* DC to 3500 MHz Operation

* Single Positive Voltage Supply

* Gain: 16.3 dB at 1950 MHz

* Output IP3: +29.5 dBm typical at 1950 MHz

* Noise Figure: 2.8 dB Typical at 1950 MHz

* Robust 1000 V Class 1C HBM ESD Rating

* Lead-free/RoHS-compliant SOT-363 Package Functional Bl

QPA4463A Datasheet (867.00 KB)

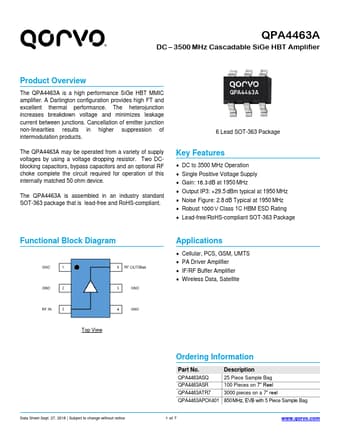

QPA4463A Datasheet Preview — Preview of QPA4463A PDF

Datasheet Details

Part number:

QPA4463A

Manufacturer:

Qorvo

File Size:

867.00 KB

Description:

Cascadable sige hbt amplifier.
