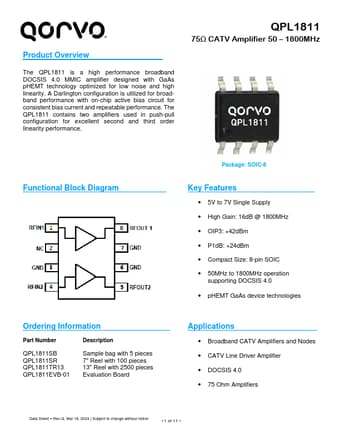

QPL1811 CATV Amplifier

QPL1811SB QPL1811SR QPL1811TR13 QPL1811EVB-01 Sample bag with 5 pieces 7" Reel with 100 pieces 13" Reel with 2500 pieces Evaluation Board Applications___________________ * Broadband CATV Amplifiers and Nodes * CATV Line Driver Amplifier * DOCSIS 4.0 * 75 Ohm Amplif.

® Product Overview_________________ The QPL1811 is a high performance broadband DOCSIS 4.0 MMIC amplifier designed with GaAs pHEMT technology optimized for low noise and high linearity. A Darlington configuration is utilized for broadband performance with on-chip active bias circuit for consistent bias current and repeatable performance. The QPL1811 contains two amplifiers used in push-pull configuration for excellent second and third order linearity performance. QPL1811 75Ω CATV Amplifier 50 <.

QPL1811 Features

* _________________

* 5V to 7V Single Supply

* High Gain: 16dB @ 1800MHz

* OIP3: +42dBm

* P1dB: +24dBm

* Compact Size: 8-pin SOIC

* 50MHz to 1800MHz operation supporting DOCSIS 4.0

* pHEMT GaAs device technologies Ordering Information___________

QPL1811 Datasheet (540.37 KB)

QPL1811 Datasheet Preview — Preview of QPL1811 PDF

Datasheet Details

Part number:

QPL1811

Manufacturer:

Qorvo

File Size:

540.37 KB

Description:

Catv amplifier.
