QPL1816 Datasheet, Amplifier, Qorvo

QPL1816 Features

  • Amplifier
  • 50 MHz to 1800 MHz Operation
  • 6 V Single Power Supply
  • Gain: 10 dB Typical
  • Noise Figure: 2.5 dB Typical at 1250 MHz
  • Convenient SOT-89 Pac

PDF File Details

Part number:

QPL1816

Manufacturer:

Qorvo

File Size:

649.64kb

Download:

📄 Datasheet

Description:

10db catv amplifier. Sample bag with 5 pieces 7" Reel with 100 pieces 13" Reel with 2500 pieces Evaluation Board Applications

  • FTTH GPON and GEP

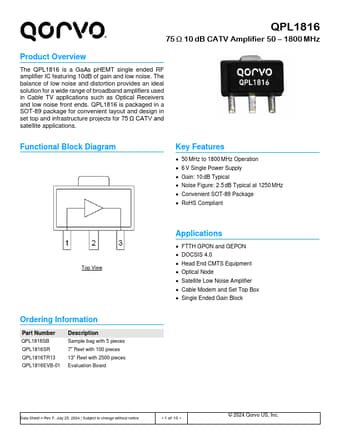

  • Datasheet Preview: QPL1816 📥 Download PDF (649.64kb)
    Page 2 of QPL1816 Page 3 of QPL1816

    QPL1816 Application

    • Applications such as Optical Receivers and low noise front ends. QPL1816 is packaged in a SOT-89 package for convenient layout and design in set top
