QPL6202Q Datasheet, Lna, qorvo

QPL6202Q Features

  • Lna
  • Tested to AEC-Q100 Grade 2
  • Ultra-low noise figure, 0.52 dB NF @ 2.3 GHz
  • >20 dB gain across SDARS
  • Bias adjustable for linearity optimization

PDF File Details

Part number:

QPL6202Q

Manufacturer:

qorvo

File Size:

738.58kb

Download:

📄 Datasheet

Description:

High gain lna. The QPL6202Q is a flat-gain, high-linearity, ultra-low noise amplifier in a small 2 x 2 mm surface-mount package. At 2.3 GHz, the amp

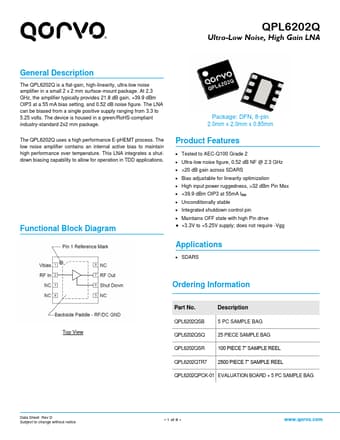

Datasheet Preview: QPL6202Q 📥 Download PDF (738.58kb)
Page 2 of QPL6202Q Page 3 of QPL6202Q

QPL6202Q Application

  • Applications Functional Block Diagram Product Features
  • Tested to AEC-Q100 Grade 2
  • Ultra-low noise figure, 0.52 dB NF @ 2.3 GHz

TAGS

QPL6202Q
High
Gain
LNA
qorvo
