QPL7420

CATV Amplifier

QPL7420 Features

* 5 MHz to 1800 MHz Operation

* 3 V, 5 V, and 8 V Operation

* Gain; 20 dB Typical

* Noise Figure; 1.1 dB Typical at 850 MHz

* Adjustable Bias Using External Resistors

* Convenient QFN Package

* RoHS Compliant Top View Ordering Information Pa

QPL7420 General Description

Sample bag with 5 pieces 7" Reel with 100 pieces 7" Reel with 2500 pieces 47 

* 1800 MHz Evaluation Board 5 

* 684 MHz Evaluation Board Applications

* DOCSIS 3.1 and 4.0

* Downstream Applications, 47 to 1800 MHz

* Upstream Applications, 5 to 684 MHz

* H.

QPL7420 Datasheet (2.62 MB)

Preview of QPL7420 PDF

Datasheet Details

Part number:

QPL7420

Manufacturer:

Qorvo

File Size:

2.62 MB

Description:

Catv amplifier.

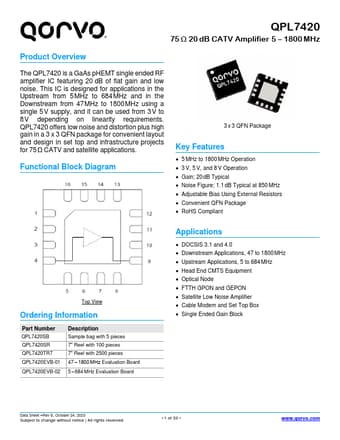

QPL7420 ® 75 Ω 20 dB CATV Amplifier 5

* 1800 MHz Product Overview The QPL7420 is a GaAs pHEMT single ended RF amplifier IC featuring 20 dB.
