QPL1815 Datasheet, Amplifier, Qorvo

QPL1815 Features

  • Amplifier _________________
  • 7V Single Supply
  • 12dB Gain @ 1800MHz
  • OIP3: +40dBm
  • P1dB: +24dBm
  • Compact Size: 8-pin SOIC
  • 50MHz to 1800MHz op

PDF File Details

Part number:

QPL1815

Manufacturer:

Qorvo

File Size:

637.93kb

Download:

📄 Datasheet

Description:

Catv amplifier. QPL1815SB QPL1815SR QPL1815TR13 QPL1815EVB-01 Sample bag with 5 pieces 7" Reel with 100 pieces 13" Reel with 2500 pieces Evaluation

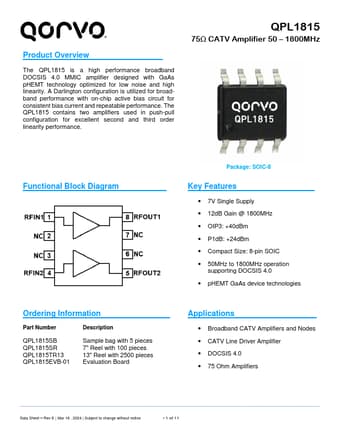

Datasheet Preview: QPL1815 📥 Download PDF (637.93kb)
Page 2 of QPL1815 Page 3 of QPL1815

QPL1815 Application

  • Applications __________________
  • Broadband CATV Amplifiers and Nodes
  • CATV Line Driver Amplifier
  • DOCSIS 4.0
  • 75
