QPL8833, 15dB CATV Amplifier

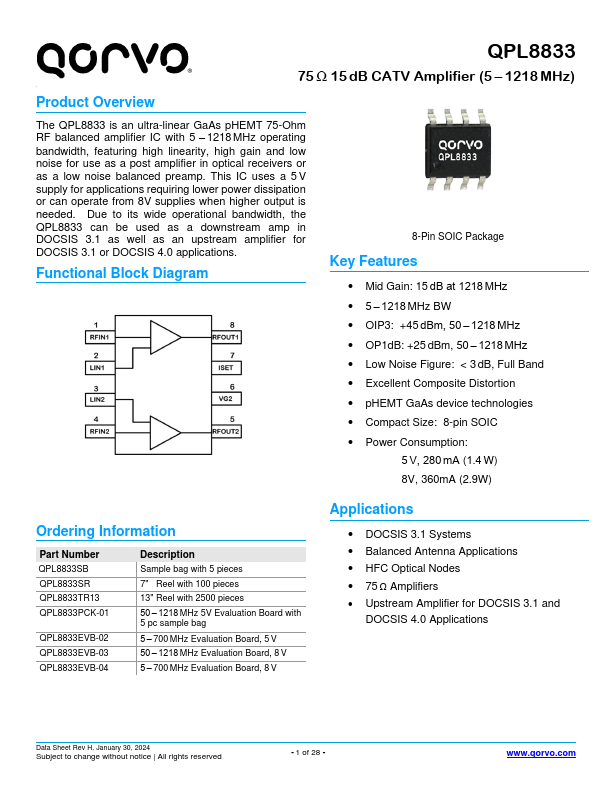

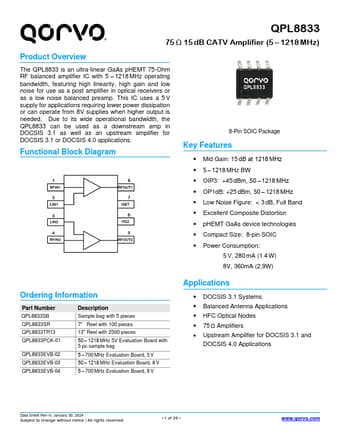

QPL8833 ® ))) Product Overview 75 Ω 15 dB CATV Amplifier (5 * 1218 MHz) The QPL8833 is an ultra-linear GaAs pHEMT 75-Ohm RF balanced amplif.
Sample bag with 5 pieces 7" Reel with 100 pieces 13" Reel with 2500 pieces 50 . 1218 MHz 5V Evaluation Board with 5 pc sample bag 5 . .

datasheet Preview Page 1 from Datasheet4u.com

QPL8833-qorvo.pdf

QPL8833 Datasheet Preview — Preview of QPL8833 PDF

Datasheet Details

Part number:

QPL8833

Manufacturer:

qorvo

File Size:

1.18 MB

Description:

15dB CATV Amplifier

Features

* Mid Gain: 15 dB at 1218 MHz
* 5
* 1218 MHz BW
* OIP3: +45 dBm, 50
* 1218 MHz
* OP1dB: +25 dBm, 50
* 1218 MHz
* Low Noise Figure: < 3 dB, Full Band
* Excellent Composite Distortion
* pHEMT GaAs device technologies

Applications

* requiring lower power dissipation or can operate from 8V supplies when higher output is needed. Due to its wide operational bandwidth, the QPL8833 can be used as a downstream amp in DOCSIS 3.1 as well as an upstream amplifier for DOCSIS 3.1 or DOCSIS 4.0 applications. Functional Block Diagram 8-Pin
