QPL8832 Datasheet - qorvo

QPL8832 - 19dB CATV Amplifier

Sample bag with 5 pieces 7" Reel with 100 pieces 13" Reel with 2500 pieces 50  * 1218 MHz 5V Evaluation Board with 5 pc sample bag 5  * 700 MHz Evaluation Board, 5 V 50  * 1218 MHz Evaluation Board, 8 V 5  * 700 MHz Evaluation Board, 8 V Applications * DOCSIS 3.1

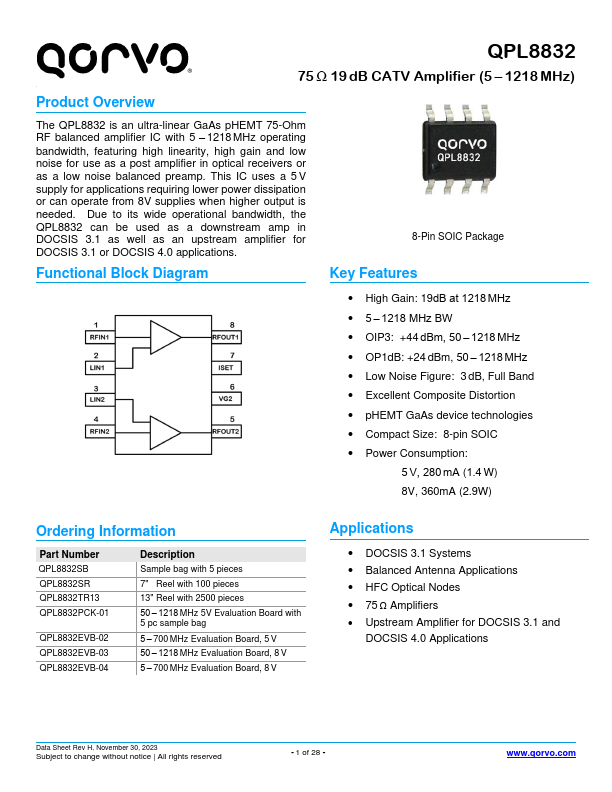

QPL8832 ® ))) Product Overview 75 Ω 19 dB CATV Amplifier (5   1218 MHz) The QPL8832 is an ultra-linear GaAs pHEMT 75-Ohm RF balanced amplifier IC with 5    1218 MHz operating bandwidth, featuring high linearity, high gain and low noise for use as a post amplifier in optical receivers or as a low noise balanced preamp.

This IC uses a 5 V supply for applications requiring lower power dissipation or can operate from 8V supplies when higher output is needed.

Due to its wide operat

QPL8832 Features

* High Gain: 19dB at 1218 MHz

* 5 

*  1218 MHz BW

* OIP3: +44 dBm, 50 

*  1218 MHz

* OP1dB: +24 dBm, 50 

*  1218 MHz

* Low Noise Figure: 3 dB, Full Band

* Excellent Composite Distortion

* pHEMT GaAs device technologies

QPL8832-qorvo.pdf

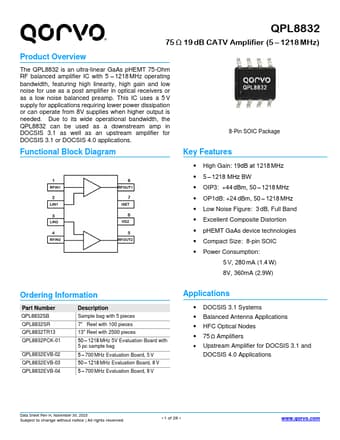

Preview of QPL8832 PDF

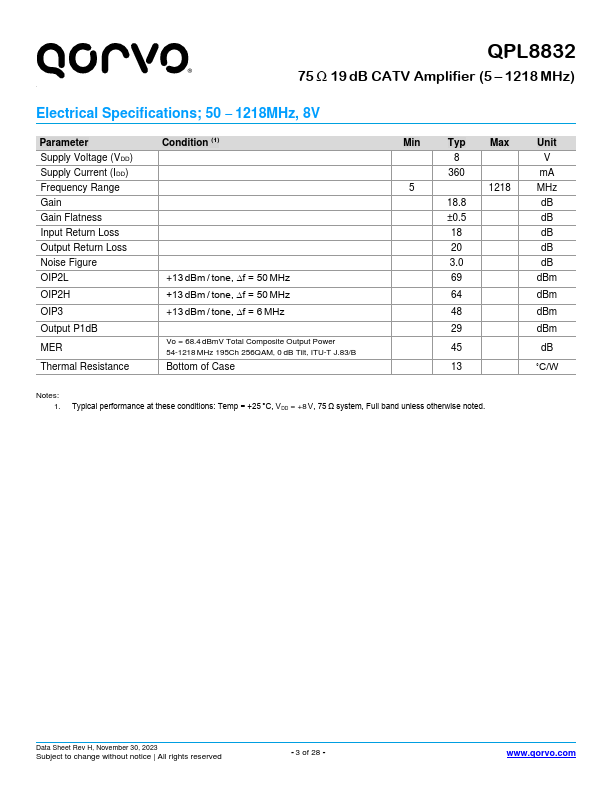

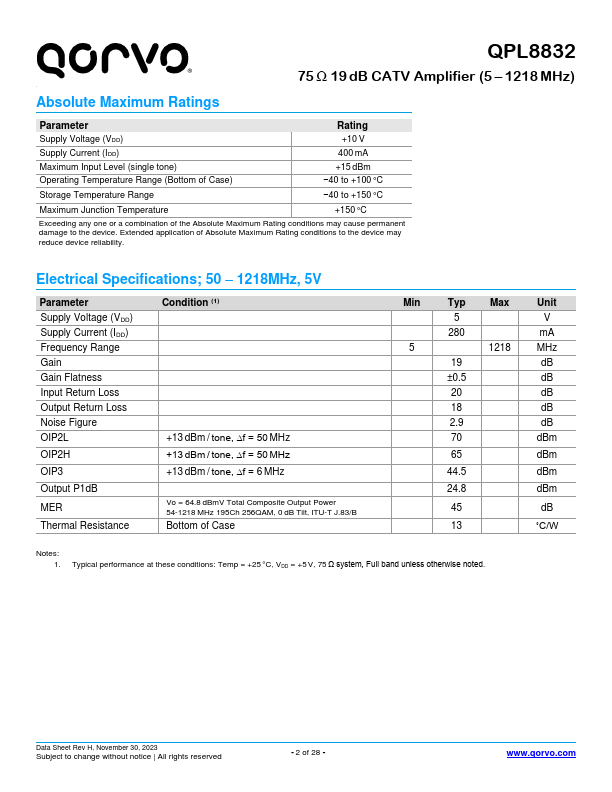

QPL8832 Datasheet Preview Page 2 QPL8832 Datasheet Preview Page 3

Datasheet Details

Part number:

QPL8832

Manufacturer:

qorvo

File Size:

2.10 MB

Description:

19db catv amplifier.
