RF2311 GENERAL PURPOSE AMPLIFIER

The RF2311 is a general purpose, low cost low power RF amplifier IC. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as an easily cascadable 50 Ω gain block. Applications include IF and RF amplification in wire.

RF2311 Features

* DC to well over 1600MHz Operation

* Internally Matched Input and Output

* 14dB Small Signal Gain

* 4.2dB Noise Figure

* +9dBm Output Power

* Single 2.7V to 6V Positive Power Supply VCC 1 GND 2 GND 3 RF IN 4 8 RF OUT 7 GND 6 GND 5 GND Ordering Info

RF2311 Datasheet (61.81 KB)

Preview of RF2311 PDF

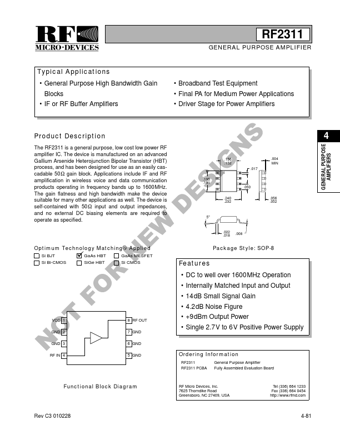

RF2311 Datasheet Preview Page 2 RF2311 Datasheet Preview Page 3
