RF2314 GENERAL PURPOSE LOW NOISE AMPLIFIER

Ground connection. Keep traces physically short and connect immediately to ground plane for best performance. Same as pin 1. RF input pin. This pin is internally DC blocked and thus does not require an external blocking capacitor. The input impedance of this pin is internally matched to 50 Ω using r.
           RF2314       Broadband Gain Blocks Final PA for Low-Power Applications IF or RF Buffer Amplifiers Driver Stage for Power Amplifiers Oscillator Loop Amplifiers      The RF2314 is a general purpose, low-cost, high performance amplifier designed for operation from a 2.7V to 6V supply with low current consumption. The circuit configuration with resistive feedback allows for broad.

RF2314 Datasheet (114.05 KB)

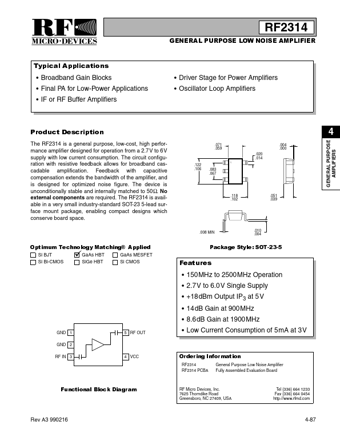

Preview of RF2314 PDF
RF2314 Datasheet Preview Page 2 RF2314 Datasheet Preview Page 3

Datasheet Details

Part number:

RF2314

Manufacturer:

RF Micro Devices

File Size:

114.05 KB

Description:

General purpose low noise amplifier.
