RF2318

LINEAR BROADBAND AMPLIFIER

RF Micro Devices

RF2318 Features

* DC to over 5000MHz Operation

* Internally Matched Input and Output

* 8dB Small Signal Gain

* 6dB Noise Figure

* +18dBm Output Power RF IN 1 GND 2 GND 3 GND 4 8 RF OUT 7 GND 6 GND 5 GND

* Single 9V to 12V Positive Power Supply Ordering Information

RF2318 General Description

The RF2318 is a broadband general purpose, low cost high linearity RF amplifier IC. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as an easily cascadable 75 Ω gain block. The gain flatness of better than 1.0d.

RF2318 Datasheet (110.66 KB)

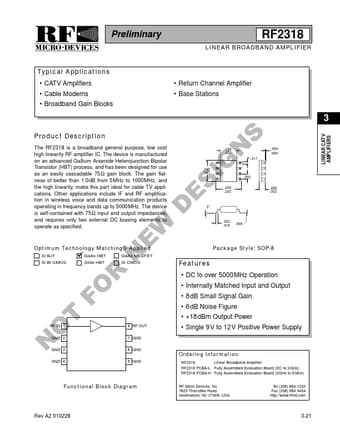

RF2318 Datasheet Preview — Preview of RF2318 PDF

Datasheet Details

Part number:

RF2318

Manufacturer:

RF Micro Devices

File Size:

110.66 KB

Description:

Linear broadband amplifier.
Preliminary RF2318 LINEAR BROADBAND AMPLIFIER 3 Typical Applications

* CATV Amplifiers

* Cable Modems

* Broadband Gain Block.
