RF2317 - LINEAR CATV AMPLIFIER

RF Micro Devices

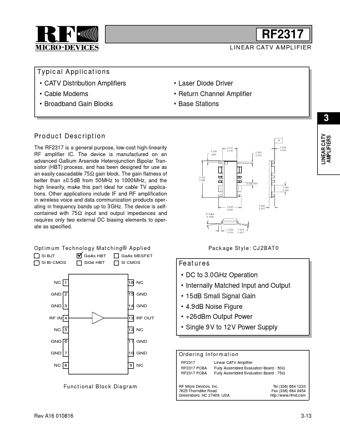

RF2317 Datasheet Preview — Preview of RF2317 PDF

Datasheet Details

Part number	RF2317
Manufacturer	RF Micro Devices
File Size	151.99 KB
Description	LINEAR CATV AMPLIFIER
Datasheet	RF2317_RFMicroDevices.pdf

RF2317 Product details

Description

RF2317 Absolute Maximum Ratings Parameter Device Current Input RF Power Output Load VSWR Ambient Operating Temperature Storage Temperature Rating 250 +18 20:1 -40 to +85 -40 to +150 Unit mA dBm °C °C Caution! ESD sensitive device.RF Micro Devices believes the furnished information is correct and accurate at the time of this printing.However, RF Micro Devices reserves the right to make changes to its products without notice.RF Micro Devices does not assume responsibility for the use of the

Features

DC to 3.0GHz Operation.
Internally Matched Input and Output.
15dB Small Signal Gain.
4.9dB Noise Figure.
+26dBm Output Power.
Single 9V to 12V Power Supply NC 1 GND 2 GND 3 RF IN 4 NC 5 GND 6 GND 7 NC 8 16 NC 15 GND 14 GND 13 RF OUT 12 NC 11 GND 10 GND 9 NC Ordering Information RF2317 RF2317 PCBA RF2317 PCBA Linear CATV Amplifier Fully Assembled Evaluation Board - 50 Ω Fully Assembled Evaluation Board - 75 Ω Tel (336) 664 1233 Fax (336) 6.
