RF3511 3V W-CDMA SINGLE-BAND POWER AMPLIFIER MODULE

RF3511 Description

RF3511 3V W-CDMA SINGLE-BAND POWER AMPLIFIER MODULE RF3511 The RF3511 single-band linear power amplifier supports B1 (1920-1980MHz) in 3.4V, 50Ω mob.

RF3511 Features

* Band 1 Operation
* HSDPA/HSUPA/HSPA+
* Linear Output Power to 27.5 dBm
* High Efficiency 41% at 27.5 dBm
* 3 Power Mode Operation
* Integrated Power Coupler
* No External DC Block Needed
* Digital Control Interface
* Ultra Small and Low Profile Package Applicat

RF3511 Applications

* WCDMA/HSPDA/HSUPA/HSPA+ Wireless Handsets and Data Cards Functional Block Diagram Ordering Information RF3511 3V W-CDMA Band 1 PA Module RF3511SB 5 Piece Sample Bag + 3511-410 PCBA RF3511SQ 25 Piece Sample Bag RF3511SR 100 Piece 7” Reel RF3511TR7 2500 Piece 7” Reel RF3511TR7X 7"

📥 Download Datasheet

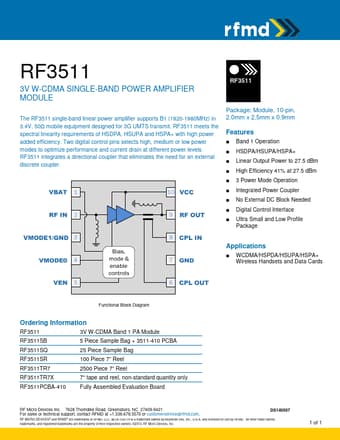

Preview of RF3511 PDF

Datasheet Details

Part number
RF3511
Manufacturer
RF Micro Devices
File Size
77.81 KB
Datasheet
RF3511-RFMicroDevices.pdf
Description
3V W-CDMA SINGLE-BAND POWER AMPLIFIER MODULE
