RF3518 - 3V W-CDMA SINGLE-BAND POWER AMPLIFIER MODULE

RF Micro Devices

The RF3518 by RF Micro Devices is a 3V W-CDMA SINGLE-BAND POWER AMPLIFIER MODULE. Below is the official datasheet preview.

📥 Download Datasheet

RF3518 3V W-CDMA SINGLE-BAND POWER AMPLIFIER MODULE by RF Micro Devices - Datasheet Preview — Official preview page of the RF3518 3V W-CDMA SINGLE-BAND POWER AMPLIFIER MODULE datasheet (RF Micro Devices).

Datasheet Details

Part number	RF3518
Manufacturer	RF Micro Devices
File Size	78.83 KB
Description	3V W-CDMA SINGLE-BAND POWER AMPLIFIER MODULE
Datasheet	RF3518-RFMicroDevices.pdf

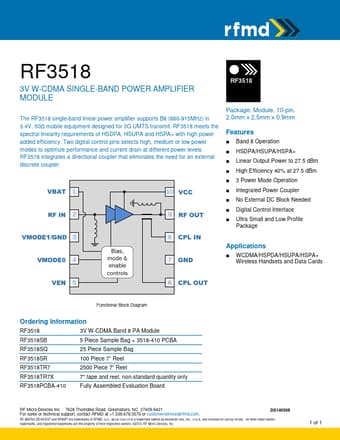

Additional preview pages of the RF3518 datasheet.

RF3518 Product details

Features

Band 8 Operation.
HSDPA/HSUPA/HSPA+.
Linear Output Power to 27.5 dBm.
High Efficiency 40% at 27.5 dBm.
3 Power Mode Operation.
Integrated Power Coupler.
No External DC Block Needed.
Digital Control Interface.
Ultra Small and Low Profile Package.
