RF3501E Datasheet - RF Monolithics

RF3501E SAW Filter

863.0 - 870.0 MHz Filter Optimized for use with the TRC103 Transceiver Balanced 150 ohm IC Interface Complies with Directive 2002/95/EC (RoHS) RF3501E 866.1 MHz SAW Filter Value +15 ±5 -40 to +85 -40 to +85 Pb Absolute Maximum Ratings Rating Input Power Level DC Voltage Operating Temperature Range Storage Temperature Range in Tape and Reel Units dBm V °C °C SM3030-8 Electrical Characteristics Characteristic Center Frequency 1 dB Bandwidth 3 dB Bandwid.

RF3501E_RFMonolithics.pdf

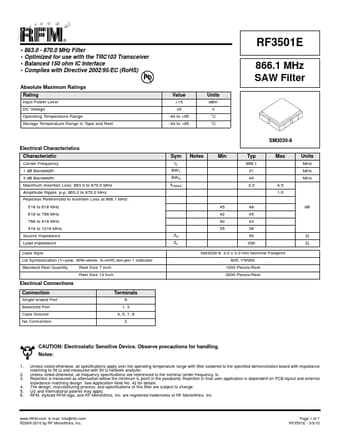

Preview of RF3501E PDF
RF3501E Datasheet Preview Page 2 RF3501E Datasheet Preview Page 3

Datasheet Details

Part number:

RF3501E

Manufacturer:

RF Monolithics

File Size:

534.47 KB

Description:

Saw filter.
