RF3514 3V W-CDMA SINGLE-BAND POWER AMPLIFIER MODULE

RF3514 3V W-CDMA SINGLE-BAND POWER AMPLIFIER MODULE RF3514 The RF3514 single-band linear power amplifier supports B4 (1710-1755MHz) in 3.4V, 50Ω mobile equipment designed for 3G UMTS transmit. RF3514 meets the spectral linearity requirements of HSDPA, HSUPA and HSPA+ with high power added efficiency. Two digital control pins selects high, medium or low power modes to optimize performance and current drain at different power levels. RF3514 integrates a directional coupler that eliminates the ne.

RF3514 Features

* Band 4 Operation

* HSDPA/HSUPA/HSPA+

* Linear Output Power to 27.5 dBm

* High Efficiency 40% at 27.5 dBm

* 3 Power Mode Operation

* Integrated Power Coupler

* No External DC Block Needed

* Digital Control Interface

* Ultra Small and Low Profile Package Applicat

RF3514 Datasheet (78.04 KB)

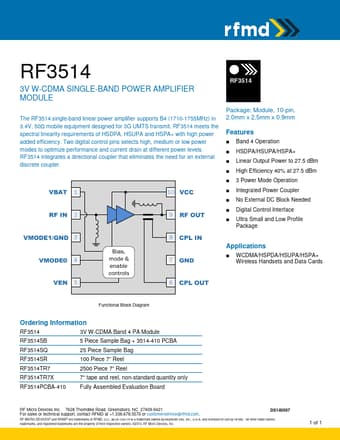

RF3514 Datasheet Preview — Preview of RF3514 PDF

Datasheet Details

Part number:

RF3514

Manufacturer:

RF Micro Devices

File Size:

78.04 KB

Description:

3v w-cdma single-band power amplifier module.
