RF3515 3V W-CDMA SINGLE-BAND POWER AMPLIFIER MODULE

RF3515 Description

RF3515 3V W-CDMA SINGLE-BAND POWER AMPLIFIER MODULE RF3515 The RF3515 single-band linear power amplifier supports B5 (824-849MHz) in 3.4V, 50Ω mobil.

RF3515 Features

* Band 5 Operation
* HSDPA/HSUPA/HSPA+
* Linear Output Power to 27.5 dBm
* High Efficiency 41% at 27.5 dBm
* 3 Power Mode Operation
* Integrated Power Coupler
* No External DC Block Needed
* Digital Control Interface
* Ultra Small and Low Profile Package Applicat

RF3515 Applications

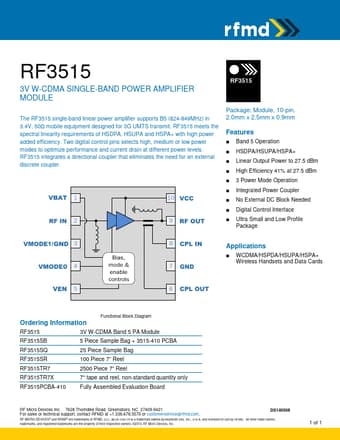

* WCDMA/HSPDA/HSUPA/HSPA+ Wireless Handsets and Data Cards Ordering Information Functional Block Diagram RF3515 3V W-CDMA Band 5 PA Module RF3515SB 5 Piece Sample Bag + 3515-410 PCBA RF3515SQ 25 Piece Sample Bag RF3515SR 100 Piece 7” Reel RF3515TR7 2500 Piece 7” Reel RF3515TR7X 7"
