RFPD2540 Datasheet - RF Micro Devices

RFPD2540 - Hybrid Power Doubler amplifier

RFPD2540 GaAs/GaN Power Doubler Hybrid 45MHz to 1218MHz The RFPD2540 is a Hybrid Power Doubler amplifier module.

The part employs GaAs HFET die, GaAs pHemt die and GaN HEMT die, has high output capability, and operates from 45MHz to 1218MHz.

It provides excellent linearity and superior return loss performance with low noise and optimal reliability.

V+ INPUT OUTPUT Ordering Information RFPD2540 Box with 50 pieces Absolute Maximum Ratings Parameter RF Input Voltage (single tone) DC Supply Ov

RFPD2540 Features

* Excellent Linearity

* Superior Return Loss Performance

* Extremely Low Distortion

* Optimal Reliability

* Low Noise

* Unconditionally Stable Under All Terminations

* Extremely High Output Capability

* 27.5dB Min. Gain at 1218MHz

* 450mA Max. at 24VDC Application

RFPD2540-RFMicroDevices.pdf

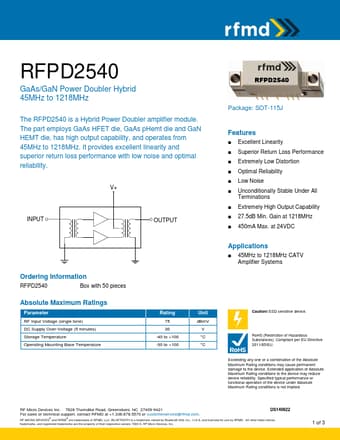

Preview of RFPD2540 PDF
RFPD2540 Datasheet Preview Page 2 RFPD2540 Datasheet Preview Page 3

Datasheet Details

Part number:

RFPD2540

Manufacturer:

RF Micro Devices

File Size:

217.58 KB

Description:

Hybrid power doubler amplifier.
