RFPD2710 Hybrid Power Doubler amplifier

RF Micro Devices

RFPD2710 Description

RFPD2710 GaAs/GaN Power Doubler Hybrid 45MHz to 1003MHz The RFPD2710 is a Hybrid Power Doubler amplifier module.The part employs GaAs pHEMT die and G.

RFPD2710 Features

* Excellent Linearity
* Superior Return Loss Performance
* Extremely Low Distortion
* Optimal Reliability
* Low Noise
* Unconditionally Stable Under All Terminations
* Extremely High Output Capability
* 24.5dB Min. Gain at 1003MHz

RFPD2710 Applications

* 45MHz to 1003MHz CATV Amplifier Systems Ordering Information RFPD2710 Box with 50 Pieces Absolute Maximum Ratings Parameter RF Input Voltage (single tone) DC Supply Over-Voltage (5 minutes) Storage Temperature Operating Mounting Base Temperature Rating 60 30 -40 to +100 -30 to +100 Unit

📥 Download Datasheet

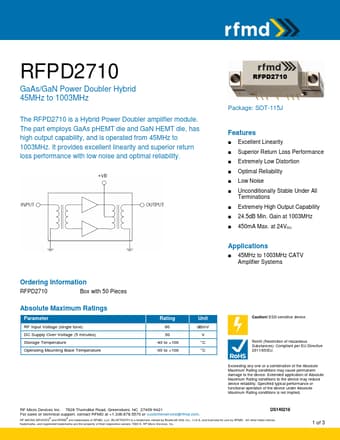

RFPD2710 Datasheet Preview — Preview of RFPD2710 PDF

Datasheet Details

Part number: RFPD2710
Manufacturer: RF Micro Devices
File Size: 254.49 KB
Datasheet: RFPD2710-RFMicroDevices.pdf
Description: Hybrid Power Doubler amplifier
