RFPD2670 Hybrid Power Doubler amplifier

RF Micro Devices

RFPD2670 Description

RFPD2670 25dB Power Doubler Hybrid 40MHz to 1003MHz The RFPD2670 is a hybrid power doubler amplifier module.The part employs GaAs MESFET, GaAs pHEMT .

RFPD2670 Features

* Excellent Linearity
* Superior Return Loss Performance
* Extremely Low Distortion
* Optimal Reliability
* Low Noise
* Unconditionally Stable Under All Terminations
* High Output Capability
* 24.5dB Min. Gain at 1003MHz

RFPD2670 Applications

* 40MHz to 1003MHz CATV Amplifier Systems Ordering Information RFPD2670 Box with 50 Pieces Absolute Maximum Ratings Parameter RF Input Voltage (single tone) DC Supply Over-Voltage (5 minutes) Storage Temperature Operating Mounting Base Temperature Rating 70 30 -40 to +100 -30 to +100 Unit

📥 Download Datasheet

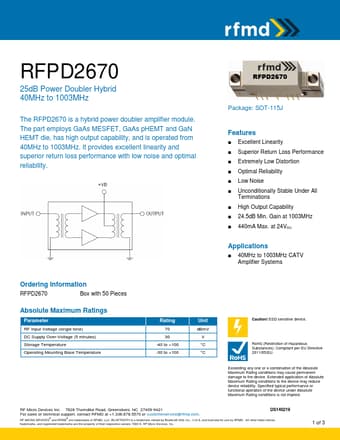

RFPD2670 Datasheet Preview — Preview of RFPD2670 PDF

Datasheet Details

Part number: RFPD2670
Manufacturer: RF Micro Devices
File Size: 254.51 KB
Datasheet: RFPD2670-RFMicroDevices.pdf
Description: Hybrid Power Doubler amplifier
