RFPD2580 Hybrid Power Doubler amplifier module

DRAFT DRAFT RFPD2580 GaAs/GaN Power Doubler Hybrid 45MHz to 1200MHz The RFPD2580 is a Hybrid Power Doubler amplifier module. The part employs GaAs pHEMT die and GaN HEMT die, has high output capability, and operates from 45MHz to 1200MHz. It provides excellent linearity and superior return loss performance with low noise and optimal reliability. V+ INPUT OUTPUT Ordering Information RFPD2580 Box with 50 pieces Absolute Maximum Ratings Parameter RF Input Voltage (single tone) DC Supply Ove.

RFPD2580 Features

* Excellent Linearity

* Superior Return Loss Performance

* Extremely Low Distortion

* Optimal Reliability

* Low Noise

* Unconditionally Stable Under All Terminations

* Extremely High Output Capability

* 22.5dB Min. Gain at 1200MHz

* 450mA Max. at 24VDC Application

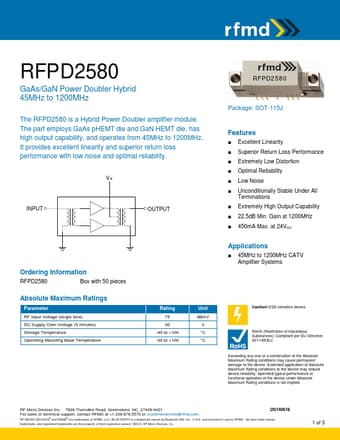

RFPD2580 Datasheet (117.59 KB)

RFPD2580 Datasheet Preview — Preview of RFPD2580 PDF

Datasheet Details

Part number:

RFPD2580

Manufacturer:

RF Micro Devices

File Size:

117.59 KB

Description:

Hybrid power doubler amplifier module.
