RFPD2660 - Hybrid Power Doubler amplifier

RF Micro Devices

The RFPD2660 by RF Micro Devices is a Hybrid Power Doubler amplifier. Below is the official datasheet preview.

📥 Download Datasheet

RFPD2660 Hybrid Power Doubler amplifier by RF Micro Devices - Datasheet Preview — Official preview page of the RFPD2660 Hybrid Power Doubler amplifier datasheet (RF Micro Devices).

Datasheet Details

Part number	RFPD2660
Manufacturer	RF Micro Devices
File Size	254.34 KB
Description	Hybrid Power Doubler amplifier
Datasheet	RFPD2660-RFMicroDevices.pdf

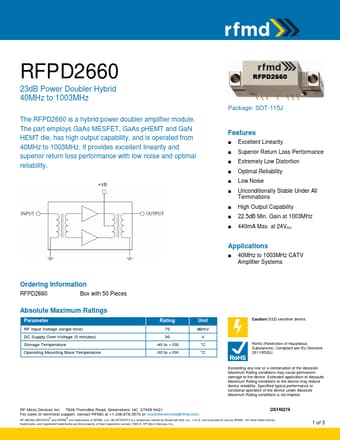

Additional preview pages of the RFPD2660 datasheet.

RFPD2660 Product details

Features

Excellent Linearity.
Superior Return Loss Performance.
Extremely Low Distortion.
Optimal Reliability.
Low Noise.
Unconditionally Stable Under All Terminations.
High Output Capability.
22.5dB Min. Gain at 1003MHz.
440mA Max. at 24VDC.
