RFRP2920 Hybrid Reverse Amplifier

RFRP2920 Description

RFRP2920 Si Reverse Hybrid 5MHz to 100MHz (Low Current) The RFRP2920 is a hybrid reverse amplifier.The part employs a silicon die.It has extremely l.

RFRP2920 Features

* Excellent Linearity
* Superior Return Loss Performance
* Extremely Low Distortion
* Optimal Reliability
* Low Noise
* Unconditionally Stable Under All Terminations
* 38.3dB Typ. Gain at 100MHz

RFRP2920 Applications

* 5MHz to 100MHz CATV Amplifier For Reverse Channel Systems Ordering Information RFRP2920 Box with 50 Pieces Absolute Maximum Ratings Parameter RF Input Voltage (single tone) DC Supply Over-Voltage (5 minutes) Storage Temperature Operating Mounting Base Temperature Rating 65 30 -40 to +100

📥 Download Datasheet

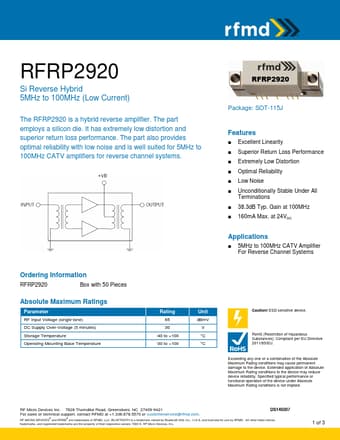

Preview of RFRP2920 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RFRP2920
Manufacturer
RF Micro Devices
File Size
253.89 KB
Datasheet
RFRP2920-RFMicroDevices.pdf
Description
Hybrid Reverse Amplifier
