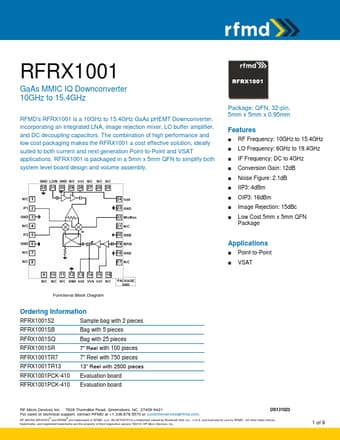

RFRX1001 Datasheet, Downconverter, RF Micro Devices

RFRX1001 Features

• Downconverter
• RF Frequency: 10GHz to 15.4GHz
• LO Frequency: 6GHz to 19.4GHz
• IF Frequency: DC to 4GHz
• Conversion Gain: 12dB
• Noise Figure: 2.1dB

PDF File Details

Part number:

RFRX1001

Manufacturer:

RF Micro Devices

File Size:

1.14MB

Download:

📄 Datasheet

Description:

Gaas mmic iq downconverter. Pin 1 2 3 4 5 6 7-11 12 13 14 15 16-17 18 19 20 21 22 23 24 25-27 28 29 30 31 32 Name N/C IF1 GND N/C IF2 GND N/C GND Vd2 VVA Vd1

RFRX1001 Application

• Applications RFRX1001 is packaged in a 5mm x 5mm QFN to simplify both system level board design and volume assembly. RFRX1001 Package: QFN, 32-pin
