RFRX1702 Datasheet - RF Micro Devices

RFRX1702 GaAs MMIC IQ Downconverter

Pin 1-4 5 6 7 8-9 10 11 12 13 14 15 16 17 18 19 20-24 25 26 27 28 29 30 31 32 Name N/C GND RF GND N/C GND IF1 GND IF2 GND Mixer Bias N/C GND LO GND N/C Vd5 Vd4 N/C Vd3 N/C Vd2 N/C Vd1 Not Connected Ground RF Input, AC coupled and matched to 50Ω Ground Not Connected Ground IF1 Output Ground IF2 O.

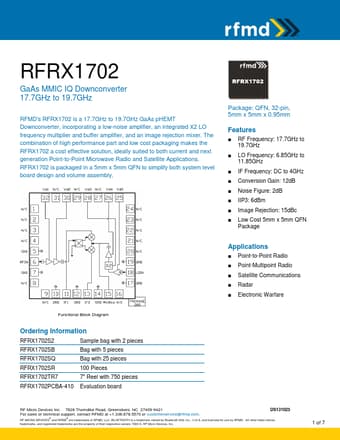

RFRX1702 GaAs MMIC IQ Downconverter 17.7GHz to 19.7GHz RFMD's RFRX1702 is a 17.7GHz to 19.7GHz GaAs pHEMT Downconverter, incorporating a low-noise amplifier, an integrated X2 LO frequency multiplier and buffer amplifier, and an image rejection mixer. The combination of high performance part and low cost packaging makes the RFRX1702 a cost effective solution, ideally suited to both current and next generation Point-to-Point Microwave Radio and Satellite Applications. RFRX1702 is packaged in a 5mm.

RFRX1702 Features

* RF Frequency: 17.7GHz to 19.7GHz

* LO Frequency: 6.85GHz to 11.85GHz

* IF Frequency: DC to 4GHz

* Conversion Gain: 12dB

* Noise Figure: 2dB

* IIP3: 6dBm

* Image Rejection: 15dBc

* Low Cost 5mm x 5mm QFN Package Applications

* Point-to-Point Radio

* Point-Mu

RFRX1702-RFMicroDevices.pdf

RFRX1702 Datasheet Preview — Preview of RFRX1702 PDF

Datasheet Details

Part number:

RFRX1702

Manufacturer:

RF Micro Devices

File Size:

1.08 MB

Description:

Gaas mmic iq downconverter.
