RFRD6461 3G POWERSMART POWER PLATFORM

RFMD

RFRD6461 Description

RFRD64613G PowerSmart™ Power Platform RFRD6461 3G POWERSMART™ POWER PLATFORM PCB Footprint: 7.6mm x 15.3mm x 1.02mm BATTERY RF DETECTOR OUT RF C.
RFMD's RFRD6461 3G multi-band, multimode PowerSmart™ power platform is targeted at smartphones and mobile internet devices (MIDs) by providing extensi.

RFRD6461 Features

* 2 Component Placement Power Platform
* RF6261B Power Amplifier: 6.0mm x 8.0mm
* RF6561 PA Power Management: 1.72mm x 2.53mm
* Multimode Capability
* GSM/EDGE/EGPRS/EDGE-Evo
* WCDMA/HSPA+
* Multi-band Coverage
* Quad-band EDGE (QBE) (850/900/1800/1900)
* ≤ Penta-

RFRD6461 Applications

* 2G/3G/4G Multimode, Multi-band Smartphones, and Mobile Internet Devices
* 3G/4G Connected Devices VRAMP VSDI SDI +1.8V 3 HB_RFIN LB_RFIN RF6561 Boost - Buck DCDC Converter RF6261 B PA Module Collector Bias CMOS Controller and SDI Interface Digital Bias Quadrature PA SP4T + SP3T M

📥 Download Datasheet

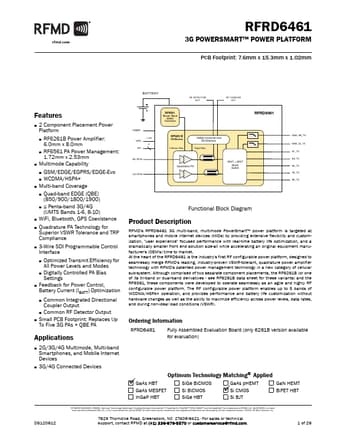

RFRD6461 Datasheet Preview — Preview of RFRD6461 PDF

Datasheet Details

Part number: RFRD6461
Manufacturer: RFMD
File Size: 1.14 MB
Datasheet: RFRD6461-RFMD.pdf
Description: 3G POWERSMART POWER PLATFORM
