RFRX1701 Datasheet, Downconverter, RF Micro Devices

RFRX1701 Features

• Downconverter
• RF Frequency: 17.7GHz to 26.5GHz
• LO Frequency: 6.85GHz to 15.25GHz
• IF Frequency: DC to 4GHz
• Conversion Gain: 13dB
• Noise Figure: 2.5dB <

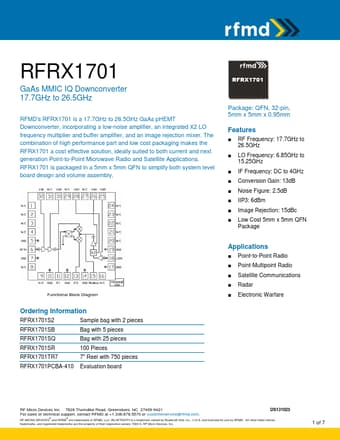

PDF File Details

Part number:

RFRX1701

Manufacturer:

RF Micro Devices

File Size:

1.32MB

Download:

📄 Datasheet

Description:

Gaas mmic iq downconverter. Pin 1-4 5 6 7 8-9 10 11 12 13 14 15 16 17 18 19 20-24 25 26 27 28 29 30 31 32 Name N/C GND RF GND N/C GND IF1 GND IF2 GND Mixer Bi

RFRX1701 Application

• Applications RFRX1701 is packaged in a 5mm x 5mm QFN to simplify both system level board design and volume assembly. RFRX1701 Package: QFN, 32-pin
