RFRX1002 Datasheet, Downconverter, RF Micro Devices

RFRX1002 Features

• Downconverter
• RF Frequency: 9GHz to 14GHz
• LO Frequency: 5GHz to 18GHz
• IF Frequency: DC to 4GHz
• LO Input Drive: +5dBm
• Conversion Gain: 14dB

PDF File Details

Part number:

RFRX1002

Manufacturer:

RF Micro Devices

File Size:

1.27MB

Download:

📄 Datasheet

Description:

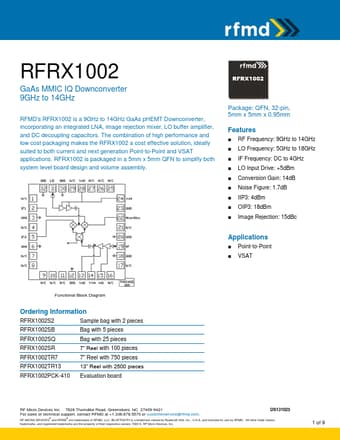

Gaas mmic iq downconverter. Pin 1 2 3 4 5 6 7-11 12 13 14 15 16-17 18 19 20 21 22 23 24 25-27 28 29 30 31 32 Name N/C IF1 GND N/C IF2 GND N/C GND Vd2 VVA Vd1

RFRX1002 Application

• Applications RFRX1002 is packaged in a 5mm x 5mm QFN to simplify both system level board design and volume assembly. RFRX1002 Package: QFN, 32-pin
