RFRX8888 xPON Video Receiver

Reference Des.

RFRX8888 RFRX8888 xPON Video Receiver RFRX8888 The RFRX8888 is a video receiver integrated circuit (IC) which provides a low noise analog interface to optical access triplexer modules used in single family ONTs in fiber to the premise (FTTP) applications. The RFRX8888 exhibits low input noise and distortion to meet critical FTTP link requirements. RFRX8888, with recommended external control circuitry, provides automatic gain control to maintain a constant +19 to +23dBmV/channel output to insu.

RFRX8888 Features

* +12V Single Supply Operation

* +5V Configuration Optional

* Efficient Power Consumption 1.3W for 12V

* Low Noise 3.2pA/√Hz Equivalent Input Noise Current (EINC)

* Linearity -61dBc CSO and -64dBc CTB at +23dBmV RF Output per Channel (79-NTSC Equivalent Channels)

* 45MHz to 1

RFRX8888 Datasheet (1.30 MB)

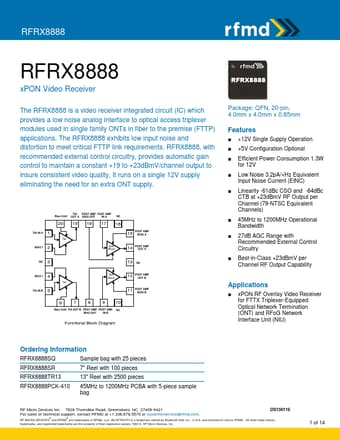

RFRX8888 Datasheet Preview — Preview of RFRX8888 PDF

Datasheet Details

Part number:

RFRX8888

Manufacturer:

RF Micro Devices

File Size:

1.30 MB

Description:

Xpon video receiver.
