RFRP3120

hybrid reverse amplifier

RFRP3120 Features

* Excellent Linearity

* Superior Return Loss Performance

* Extremely Low Distortion

* Optimal Reliability

* Low Noise

* Unconditionally Stable Under All Terminations

* 35.8dB Typical Gain at 300MHz

* 160mA Max. at 24VDC Applications

* Broadband/CATV

* 5MHz to

RFRP3120 Datasheet (192.64 KB)

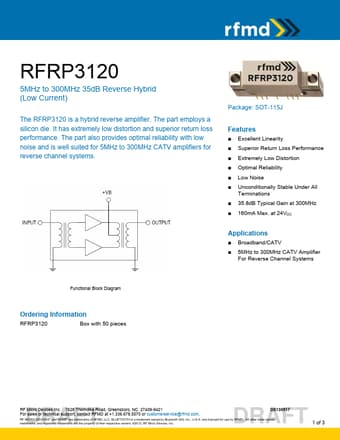

Preview of RFRP3120 PDF

Datasheet Details

Part number:

RFRP3120

Manufacturer:

RF Micro Devices

File Size:

192.64 KB

Description:

Hybrid reverse amplifier.
DRAFT DRAFT RFRP3120 5MHz to 300MHz 35dB Reverse Hybrid (Low Current) The RFRP3120 is a hybrid reverse amplifier. The part employs a silicon die. It.
