H5N3003P - N-Channel MOSFET

Renesas Technology

📥 Download Datasheet

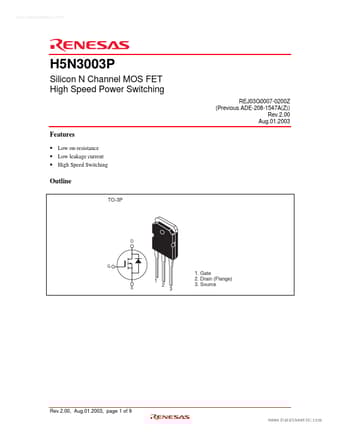

H5N3003P Datasheet Preview — Preview of H5N3003P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	H5N3003P
Manufacturer	Renesas Technology
File Size	168.93 KB
Description	N-Channel MOSFET
Datasheet	H5N3003P_RenesasTechnology.pdf

H5N3003P Product details

Features

Low on-resistance.
Low leakage current.
High Speed Switching Outline TO-3P D G 1 S 2 3 1. Gate 2. Drain (Flange) 3. Source Rev.2.00, Aug.01.2003, page 1 of 9 www. DataSheet4U. com H5N3003P Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body-drain diode reverse drain current Body-drain diode reverse drain peak current Avalanche current Channel dissipation Channel to case Thermal Impedan.
