1SS88 - Silicon Schottky Barrier Diode

1SS88 Description

1SS88 Silicon Schottky Barrier Diode for CATV Balanced Mixer REJ03G0615-0300 Rev.3.00 May 24, 2007 .

1SS88 Features

* Low capacitance. (C = 0.97 pF max)
* High reliability with glass seal. Ordering Information Part No. 1SS88 Cathode White Mark H Package Name DO-35 Package Code GRZZ0002ZB-A Pin Arrangement H 1 2 Cathode band 1. Cathode 2. Anode REJ03G0615-0300 Rev.3.00 May 24, 2007 Page

1SS88 Applications

* such as the development of weapons of mass destruction or for the purpose of any other military use. When exporting the products or technology described herein, you should follow the applicable export control laws and regulations, and procedures required by such laws and regulations. 4. All informat

📥 Download Datasheet

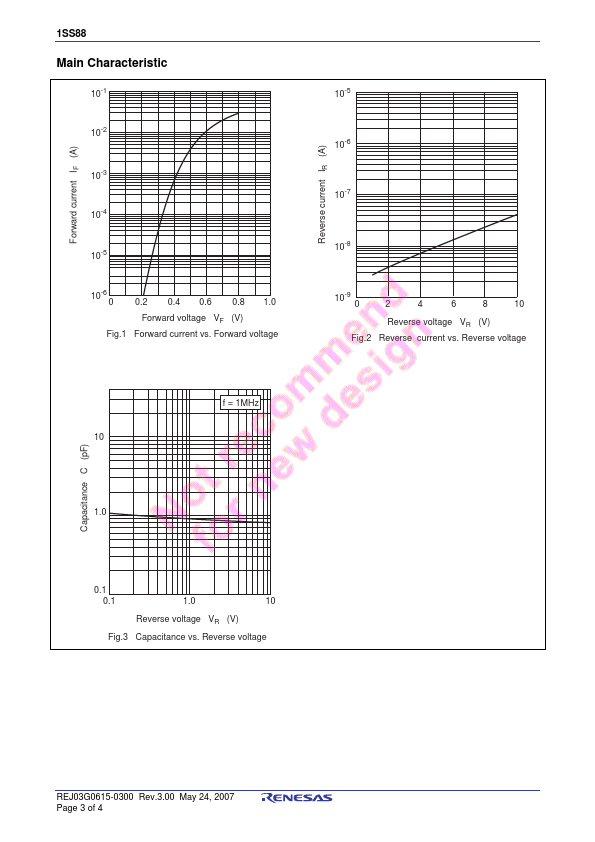

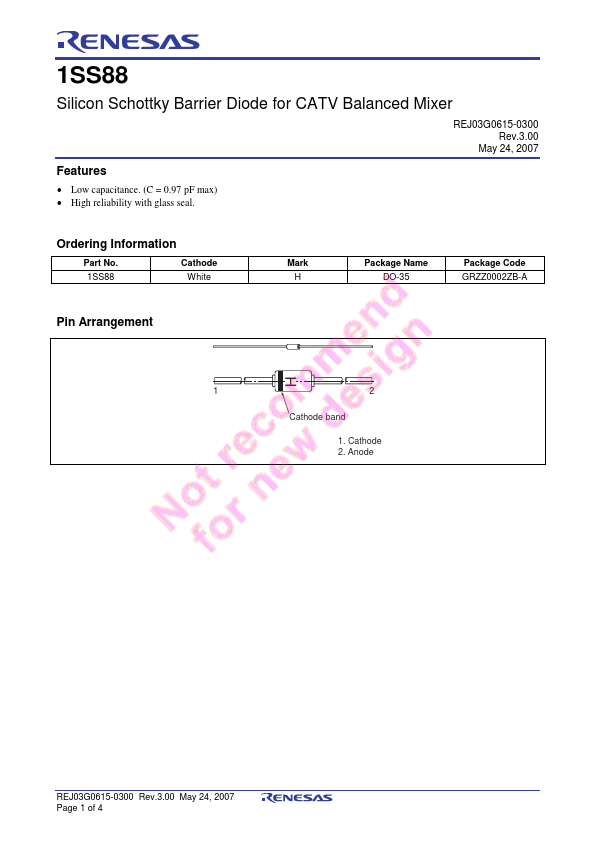

Preview of 1SS88 PDF

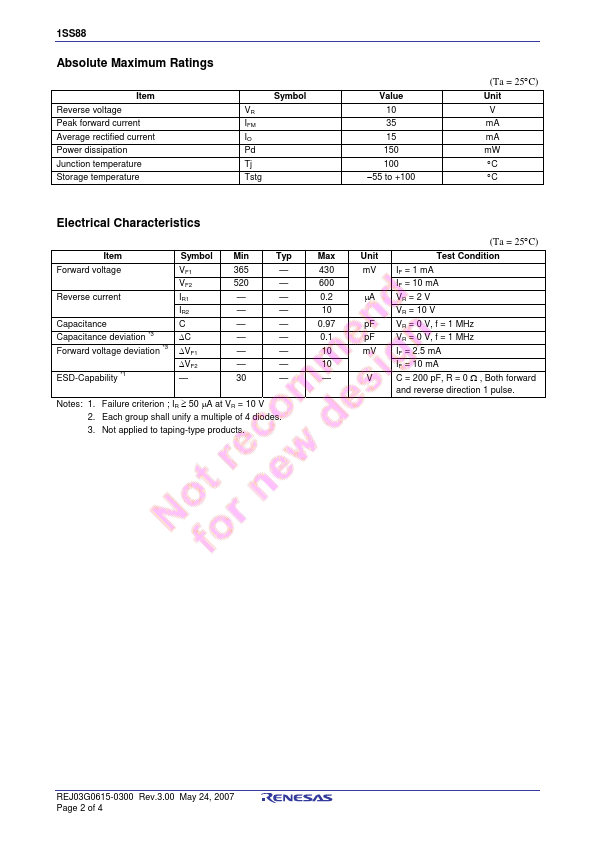

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1SS88
Manufacturer
Renesas ↗
File Size
140.63 KB
Datasheet
1SS88-Renesas.pdf
Description
Silicon Schottky Barrier Diode
