1SS119 - Silicon Epitaxial Planar Diode

1SS119 Description

1SS119 Silicon Epitaxial Planar Diode for High Speed Switching REJ03G0564-0300 (Previous: ADE-208-180B) Rev.3.00 Mar 23, 2005 .

1SS119 Features

* Low capacitance. (C = 3.0 pF max)
* Short reverse recovery time. (trr = 3.5 ns max)
* Small glass package (MHD) enables easy mounting and high reliability. Ordering Information Type No. 1SS119 Cathode band Light Blue Package Name MHD Package Code (Previous Code) GRZZ0002ZC

📥 Download Datasheet

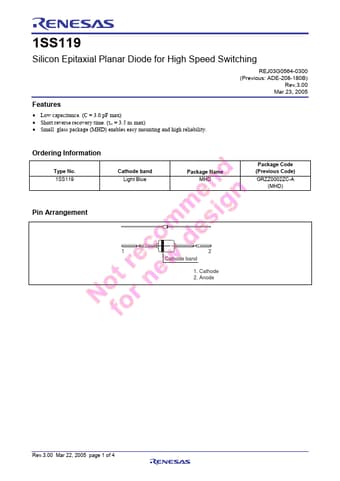

Preview of 1SS119 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1SS119
Manufacturer
Renesas ↗
File Size
201.48 KB
Datasheet
1SS119-Renesas.pdf
Description
Silicon Epitaxial Planar Diode
