2SK3161L, 2SK3161 N-Channel MOSFET

2SK3161L Description

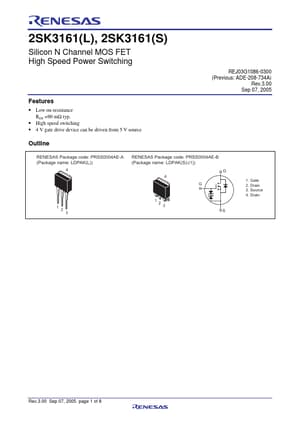

2SK3161(L), 2SK3161(S) Silicon N Channel MOS FET High Speed Power Switching .

2SK3161L Features

* Low on-resistance RDS =90 mΩ typ.
* High speed switching
* 4 V gate drive device can be driven from 5 V source Outline REJ03G1086-0300 (Previous: ADE-208-734A) Rev.3.00 Sep 07, 2005 RENESAS Package code: PRSS0004AE-A (Package name: LDPAK(L)) 4 RENESAS Package code: PRSS0

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SK3161L, 2SK3161. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK3161L, 2SK3161
Manufacturer
Renesas ↗
File Size
85.25 KB
Datasheet
2SK3161-Renesas.pdf
Description
N-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: 2SK3161L, 2SK3161.
Please refer to the document for exact specifications by model.
