89HPES10T4G2

Gen2 PCI Express Switch

89HPES10T4G2 Features

* High Performance PCI Express Switch

* Ten 5 Gbps Gen2 PCI Express lanes

* Four switch ports

* One x4 upstream port

* Three x2 downstream ports

* Low latency cut-through switch architecture

* Support for Max Payload Size up to 2048 bytes

89HPES10T4G2 General Description

Utilizing standard PCI Express interconnect, the PES10T4G2 provides the most efficient fan-out solution for applications requiring high throughput, low latency, and simple board layout with a minimum number of board layers. It provides 12 GBps (96 Gbps) of aggregated, full-duplex switching capacity .

89HPES10T4G2 Datasheet (473.37 KB)

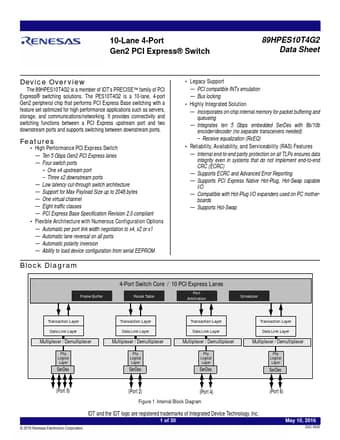

Preview of 89HPES10T4G2 PDF

Datasheet Details

Part number:

89HPES10T4G2

Manufacturer:

Renesas ↗

File Size:

473.37 KB

Description:

Gen2 pci express switch.
10-Lane 4-Port Gen2 PCI Express® Switch ® 89HPES10T4G2 Data Sheet Device Overview The 89HPES10T4G2 is a member of IDT’s PRECISE™ family of PCI Expre.
