ICS8741004I

Differential-to-LVDS/0.7V Differential Jitter Attenuator

Renesas

ICS8741004I Features

* Two LVDS and two 0.7V differential output pairs Bank A has two LVDS output pairs and Bank B has two 0.7V differential output pairs

* One differential clock input pair

* CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL

ICS8741004I General Description

The 8741004I is a high performance Differential-to-LVDS/0.7V Differential Jitter Attenuator designed for use in PCI Express™ systems. In some PCI Express systems, such as those found in desktop PCs, the PCI Express clocks are generated from a low bandwidth, high phase noise PLL frequency synthesizer.

ICS8741004I Datasheet (600.09 KB)

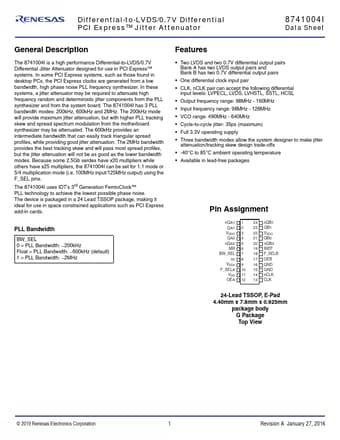

ICS8741004I Datasheet Preview — Preview of ICS8741004I PDF

Datasheet Details

Part number:

ICS8741004I

Manufacturer:

Renesas ↗

File Size:

600.09 KB

Description:

Differential-to-lvds/0.7v differential jitter attenuator.
