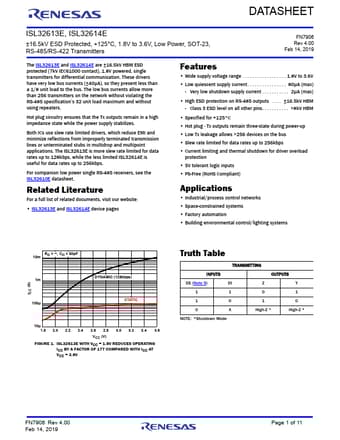

ISL32613E Datasheet Preview — Preview of ISL32613E PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ISL32613E
Manufacturer: Renesas ↗
File Size: 655.62 KB
Datasheet: ISL32613E-Renesas.pdf
Description: RS-485/RS-422 Transmitters

ISL32613E Product details

Description

PIN # 1 PIN NAME DI 2 VCC 3 DE 4 Z 5 GND 6 Y

Features

Wide supply voltage range.
. . . 1.8V to 3.6V.
Low quiescent supply current.
. 80µA (max) - Very low shutdown supply current.
. 2µA (max).
High ESD protection on RS-485 outputs . . . . ±16.5kV HBM - Class 3 ESD level on all other pins.
. >8kV HBM.
Specified for +125°C.
Hot plug - Tx outputs remain three-state during power-up.
Low Tx leakage allows >256 device.
