ISL3284E, ISL3280E, RS-485/RS-422 Receivers

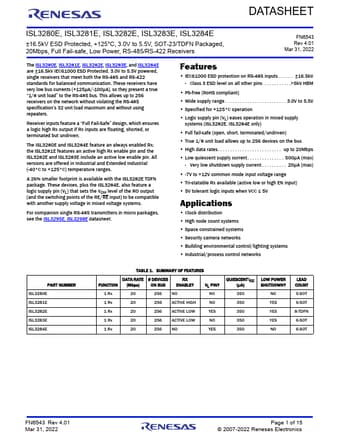

DATASHEET ISL3280E, ISL3281E, ISL3282E, ISL3283E, ISL3284E ±16.5kV ESD Protected, +125°C, 3.0V to 5.5V, SOT-23/TDFN Packaged, 20Mbps, Full Fail-safe,.
PIN NAME FUNCTION RO Receiver output: If A - B  -50mV, RO is high; If A - B  -200mV, RO is low; RO = High if A and B are unconnected (floating).

datasheet Preview Page 1 from Datasheet4u.com

ISL3280E-Renesas.pdf

ISL3284E Datasheet Preview — This datasheet PDF includes multiple part numbers: ISL3284E, ISL3280E. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISL3284E, ISL3280E

Manufacturer:

Renesas ↗

File Size:

0.97 MB

Description:

RS-485/RS-422 Receivers

Note:

This datasheet PDF includes multiple part numbers: ISL3284E, ISL3280E.
Please refer to the document for exact specifications by model.

Features

* an active high Rx enable pin and the ISL3282E and ISL3283E include an active low enable pin. All versions are offered in Industrial and Extended Industrial (-40°C to +125°C) temperature ranges. A 26% smaller footprint is available with the ISL3282E TDFN package. These devices, plus the ISL3284E, als

Applications

* Clock distribution
* High node count systems
* Space constrained systems
* Security camera networks
* Building environmental control/lighting systems
* Industrial/process control networks PART NUMBER ISL3280E ISL3281E ISL3282E ISL3283E ISL3284E TAB
