Datasheet ISL78600 Multi-Cell Li-Ion Battery Manager The ISL78600 Li-ion battery manager IC supervises up to 12 series-connected cells.

The part provides accurate monitoring, cell balancing, and extensive system diagnostics functions.

Three cell balancing modes are incorporated: Manual Balance mode, Timed Balance mode, and Auto Balance mode.

The Auto Balance mode terminates balancing functions when a charge transfer value specified by the host microcontroller has been met.

The ISL78600 communi

ISL78600 Features

* Up to 12-cell voltage monitors with support for Li-ion CoO2, Li-ion Mn2O4, and Li-ion FePO4 chemistries

* Board level cell voltage measurement accuracy ±1.5mV

* 13-bit cell voltage measurement

* Pack voltage measurement accuracy ±100mV

* 14-bit pack voltage

ISL78600-Renesas.pdf

Preview of ISL78600 PDF

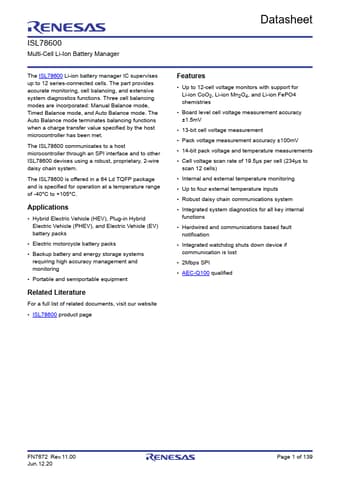

ISL78600 Datasheet Preview Page 2 ISL78600 Datasheet Preview Page 3
