ISLA216P

250MSPS/200MSPS/130MSPS ADC

ISLA216P Features

* Single supply 1.8V operation

* Clock duty cycle stabilizer

* 75fs Clock jitter

* 700MHz Bandwidth

* Programmable built-in test patterns

* Multi-ADC support - SPI Programmable fine gain and offset control - Support for multiple ADC synchronization - O

ISLA216P General Description

- 72 Ld QFN, LVDS Mode PIN NUMBER 1, 2, 17, 28, 29, 33, 34, 37, 38, 41, 42, 49, 50, 53, 54, 57, 58 6, 13, 19, 20, 21, 70, 71, 72 5, 7, 12, 14 27, 32, 62 26, 45, 61, 65 3 LVDS PIN NAME DNC AVDD AVSS OVDD OVSS NAPSLP Do Not Connect LVDS PIN FUNCTION 1.8V Analog Supply Analog Ground 1.8V Output S.

ISLA216P Datasheet (1.66 MB)

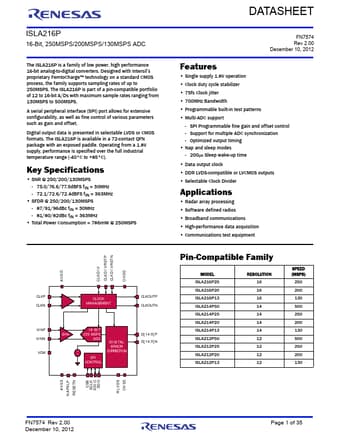

Preview of ISLA216P PDF

Datasheet Details

Part number:

ISLA216P

Manufacturer:

Renesas ↗

File Size:

1.66 MB

Description:

250msps/200msps/130msps adc.
ISLA216P 16-Bit, 250MSPS/200MSPS/130MSPS ADC The ISLA216P is a family of low power, high performance 16-bit analog-to-digital converters. Designed wit.
