ISLA216S - High Speed Serial Output ADC

Renesas

📥 Download Datasheet

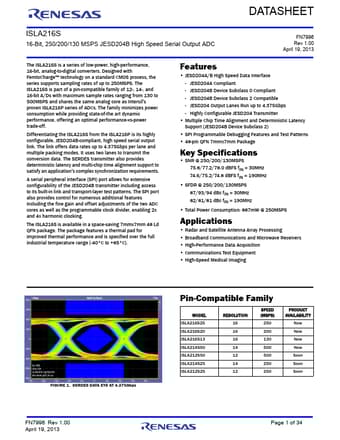

ISLA216S Datasheet Preview — Preview of ISLA216S PDF

Datasheet Details

Part number: ISLA216S
Manufacturer: Renesas ↗
File Size: 2.11 MB
Datasheet: ISLA216S-Renesas.pdf
Description: High Speed Serial Output ADC

ISLA216S Product details

Description

PIN NUMBER 2, 11, 14, 15, 46 12, 20, 33, 34, 47, 48 3, 4, 9, 10 7, 8 5, 6 1 44 16, 17 45 13 26, 29, 32, 35, 37, 38 25, 36, 39 22, 24 21, 23 18, 19 27, 28 30, 31 40 41 42 43 PAD NAME AVDD DNC AVSS VINP VINN VCM CLKDIV CLKP, CLKN NAPSLP RESETN OVSS OVDD OVDD (PLL) OVSS (PLL) SYNCP, SYNCN LANE0P, LANE0N LANE1P, LANE1N SDO CSB SCLK SDIO AVSS

Features

including the fine gain and offset adjustments of the two ADC cores as well as the programmable clock divider, enabling 2x and 4x harmonic clocking. The ISLA216S is available in a space-saving 7mmx7mm 48 Ld QFN package. The package features a thermal pad for improved thermal performance and is specified over the full industrial temperature range (-40°C to +85°C). Features.
JESD204A/B High Speed Data Interface - JESD204A Compliant - JESD204B Device Subclass 0 Compliant - JESD204B Device.
